Name: Overhead Sectional Door
Brand: Dongguan Xinyi Door Industry Co.,Ltd.

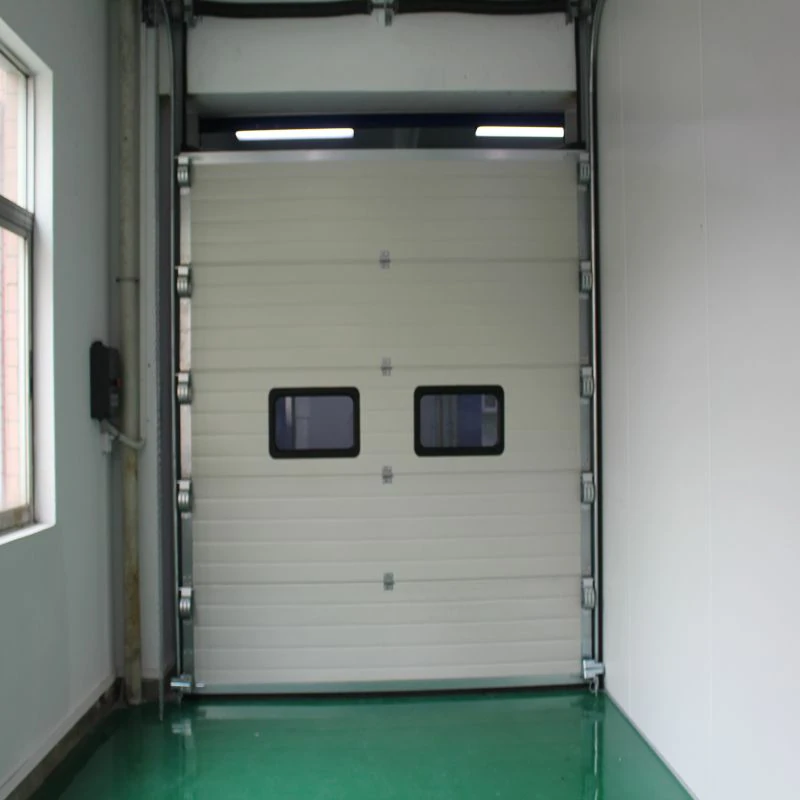

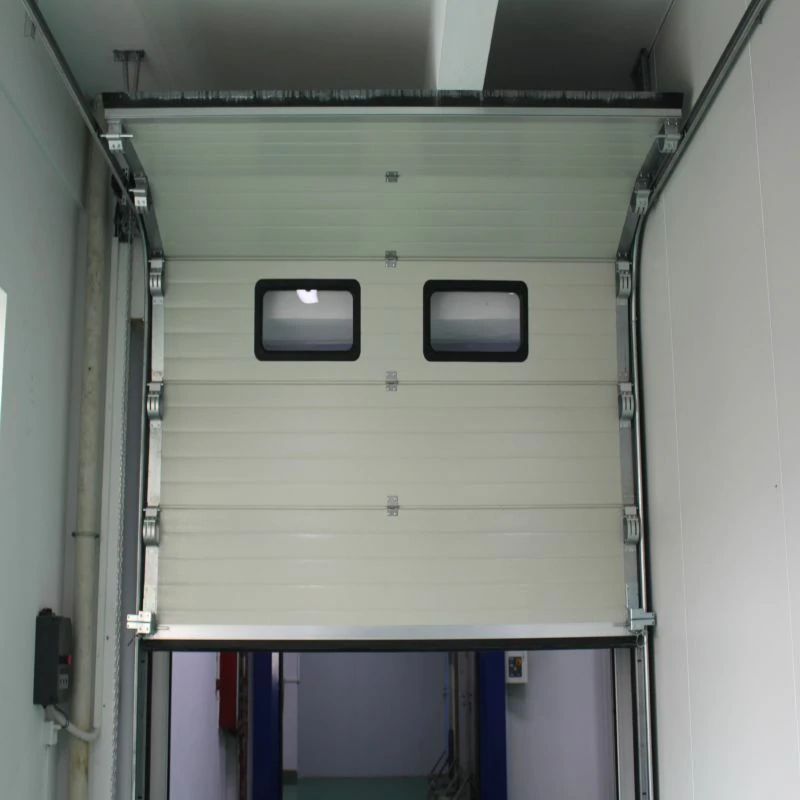

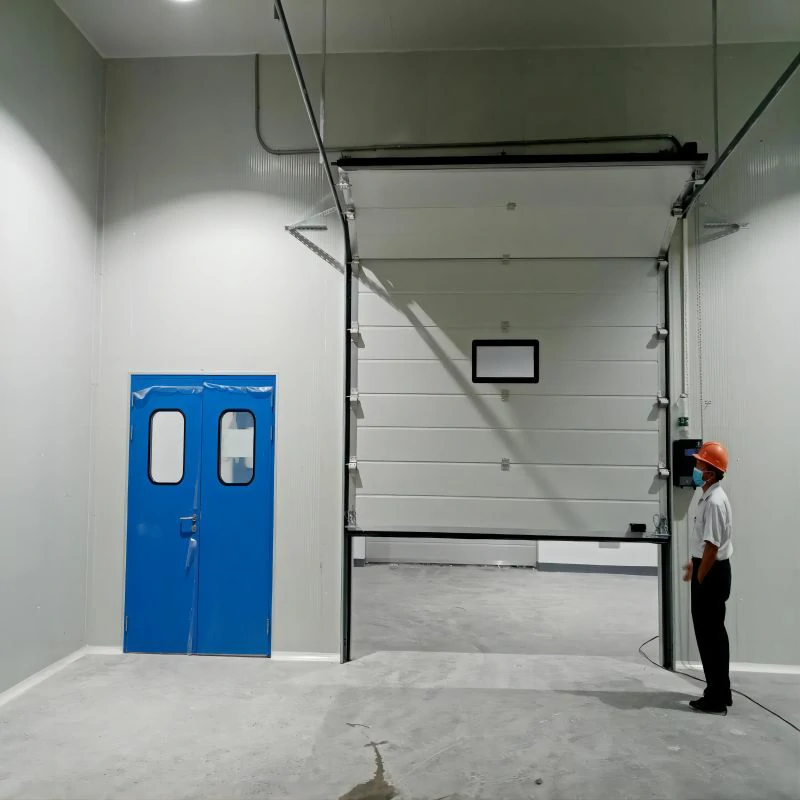

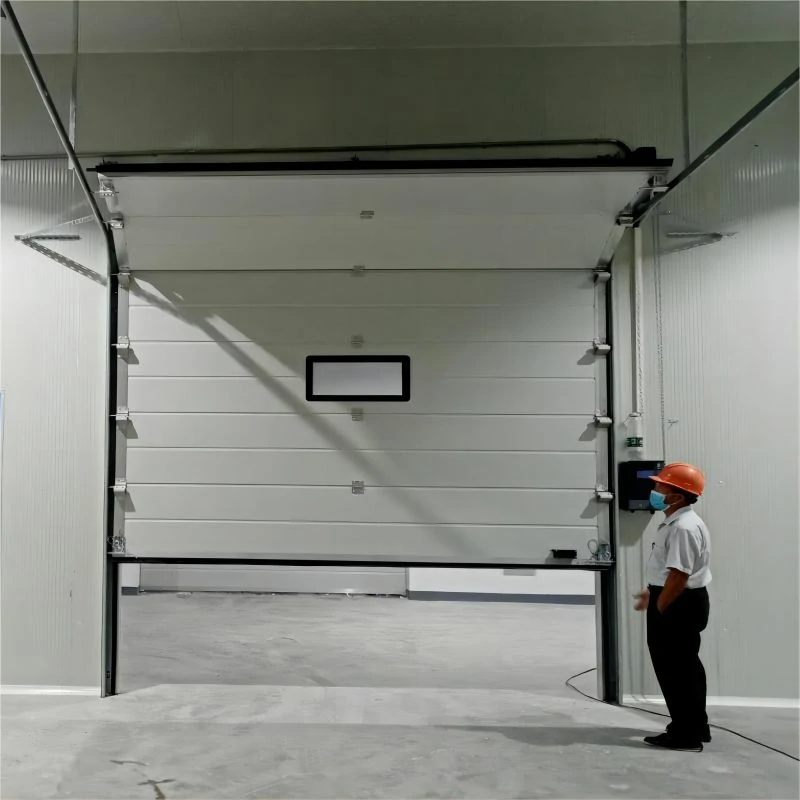

Overhead Sectional Door

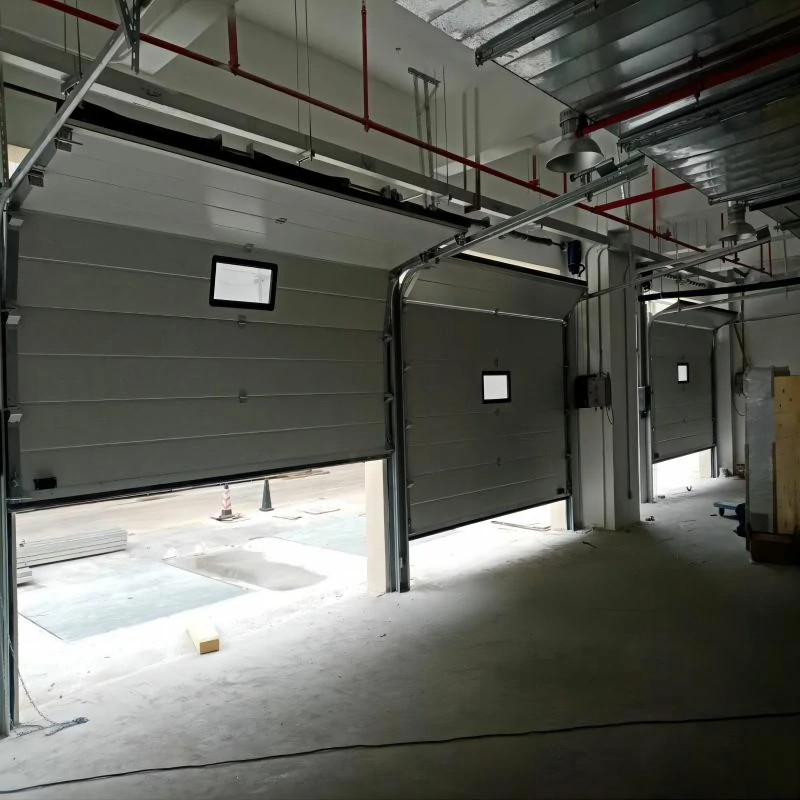

Sectional doors open vertically, creating free space in front of and behind the door. The door sections are stored flat underneath the ceiling, vertically above the opening or along the roof. Industrial sectional door is a type of industrial door being widely applied to many factories and large buildings. Industrial sectional overhead door could be also used as garage sectional door. There are also commercial sectional overhead doors and residential sectional garage door.

Specifications Of Overhead Sectional Door

Product Information
Model:	Overhead Sectional Door
Door Panel	Galvanized Steel Plate
Door Filler	Polyurethane foaming
Guide Rail	Galvanized Steel,Noise Level <= 60db
Door Panel Thickness	40mm-80mm(optional)
Operation Temperature	From -40Degrees to 50 Degrees
Drive Voltage	220V 50HZ

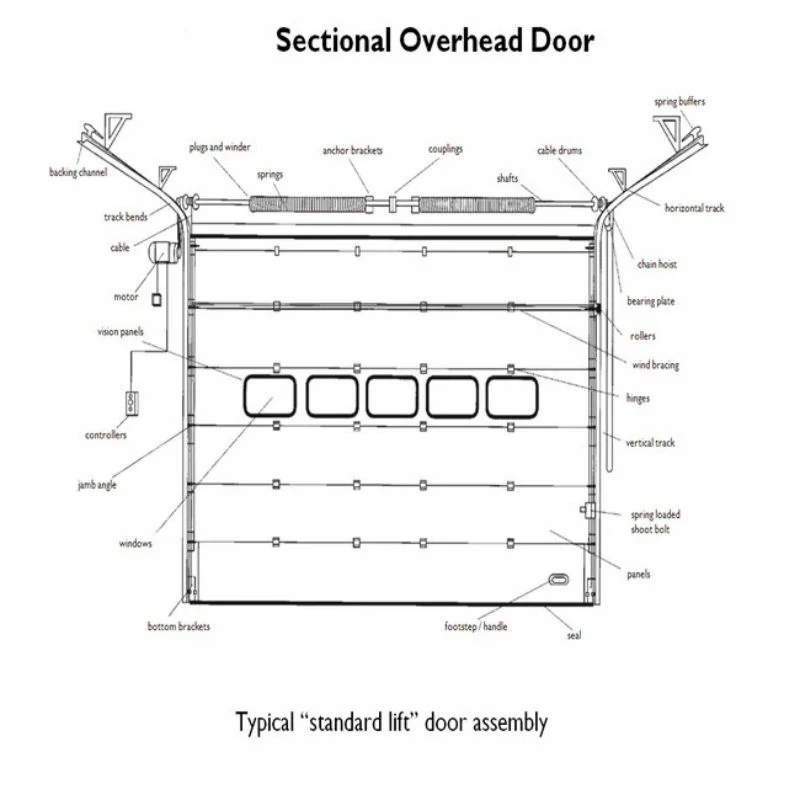

Components	Motor, airbag, spring brake device, cable break device, pulleys, control box, brackets
Technical Data:

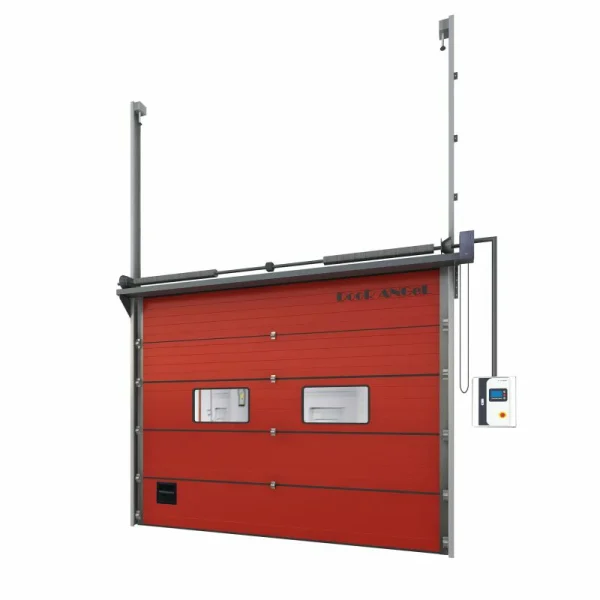

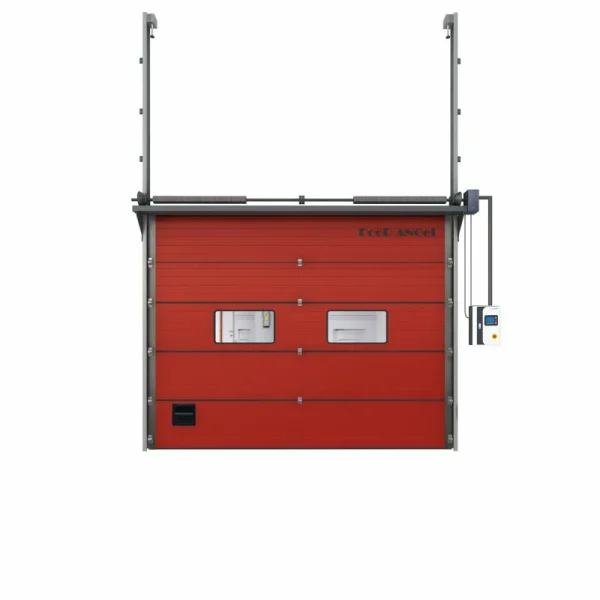

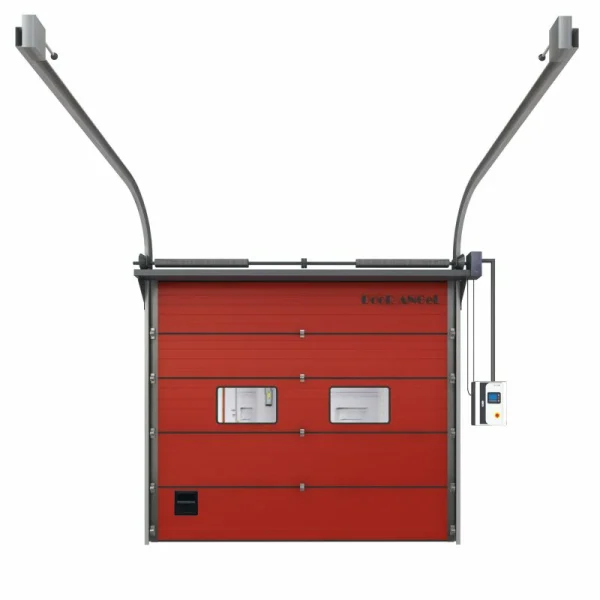

Climbing Mode	Standard Lifing, High Lifting, Vertical Lifing

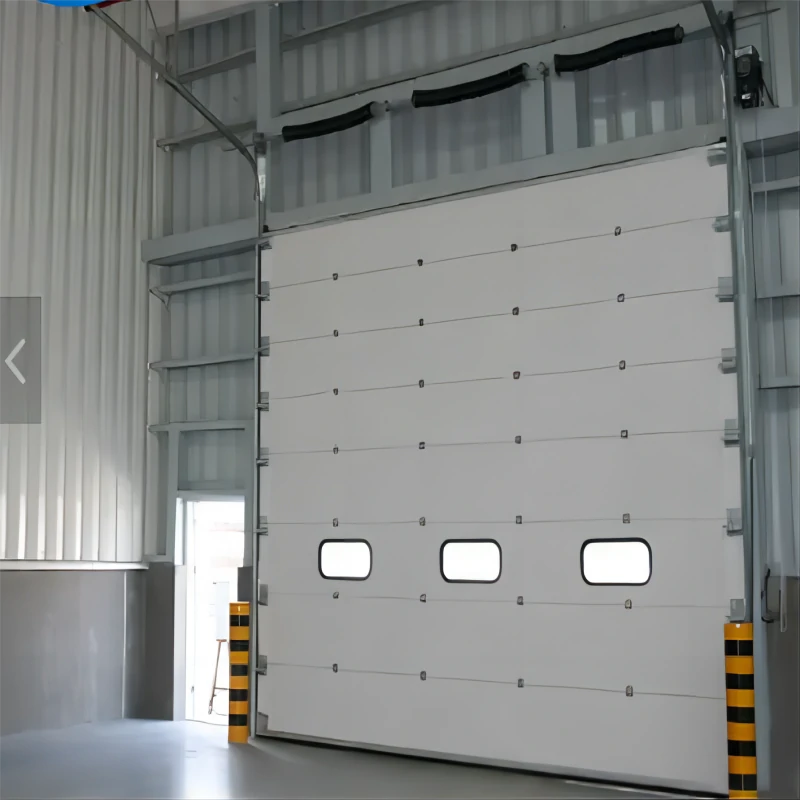

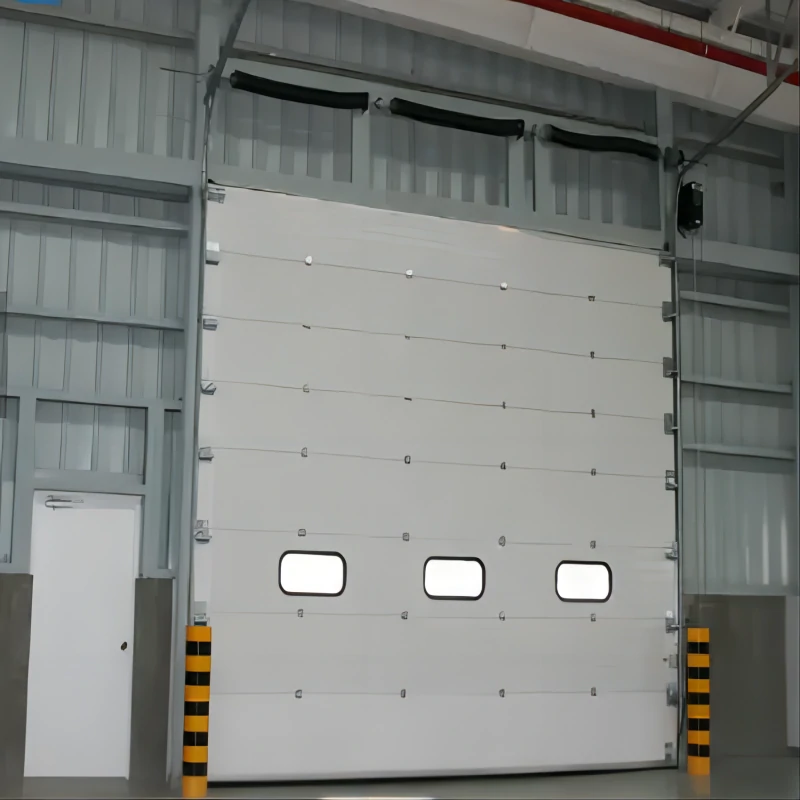

Door Configuration:	With Clear window or small sectional door or without window/door
Door Panel Size	Max 12000MM
Opening Size	Max 8000MM
Heat Transfer	K=0.4-0.5W/㎡K
Opening Speed:	about 130mm/S
Operation Counts	Max 100times /24 hours
Balance System	External torsion spring balance system, the working life of the torsion spring reaches 400000-800000s working cycle
Opening Type:	Button,rope control,remote control,Geomagnetic Control,Photocell Control, Radar Control
Package: Caron, Wooden Box
MOQ and Lead Time: 1set,3days

Features Of Overhead Sectional Door

Efficient thermal insulation
Wind-proof, low noise
Anti-theft
Multiple opening methods: Manual, motor-driven, remote, sensors.
