Description

The pvc high speed rolling door delivers good opening and closing performance, reliably achieving operational speeds over 0.6 meters per second.
This flexible pvc high speed rolling door is designed with a swift close-open system to handle continuous, high-frequency logistics traffic daily.
Featuring a modular structural design, the heavy-duty pvc high speed rolling door is extremely easy to repair with standard industrial tools.
This high speed rolling door creates a swift close-open barrier that effectively reduces facility energy loss and lowers utility costs.

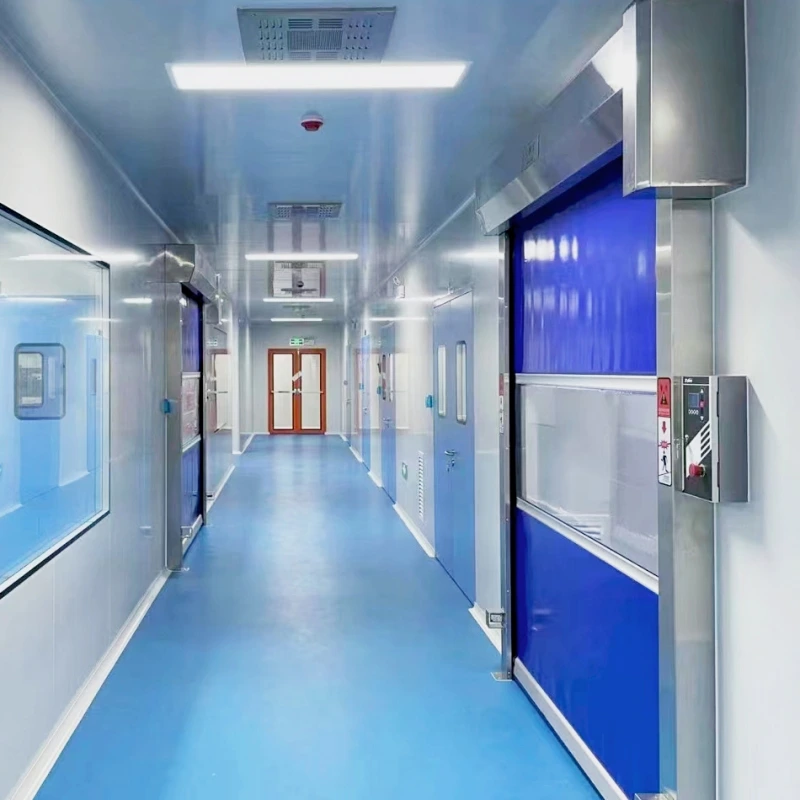

Innovative rolling interior doors can be specially suited for environments ranging from cold storage and clean rooms to general manufacturing or special machine protection applications.

Door Curtain	PVC High Speed Rolling Door 1.5mm transparent PVC
Optional color:	Yellow ,blue, orange, light blue,gray,white gridding,yellow gridding.
Bottom bar	45mm antioxidanted high strength aluminium alloy to reinforce the curtain to keep the door opening without a hitch.
Door frame	1.5mm 201#/304# stainless steel
Box cover	1.0mm 201#/304# stainless steel. Dust-proof and to avoid the roller get corrosive.
Guide rail	Carbon steel
Driven system	Servo motor： Italy SEJ motor or Xinyi Motor . (380V/220V,0.75kw/1.5kw, 2500r/min)
	Servo motor could operate more smoothly and fast than traditional motor.

Control system	Servo control system or HOLIP control box
Control system	Servo control system with integrated design and excellent EMI/EMC design can improve the electromagnetic interference .
Photocell sensor	Korea AUTONICS Photocell sensor
	To stop the door closing when someone get through the door, can protect people at extreme if there
	is an emergency.

Seal structure	Heavy fabric for isolating air is installed at the door curtain can improve the sealing effect,and the Intensive double layer brush is dust-proof and reducing noise .
