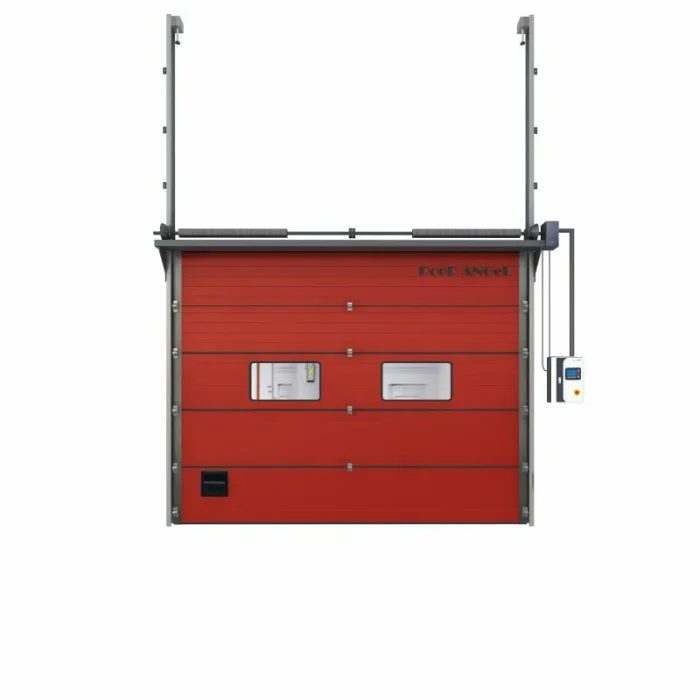

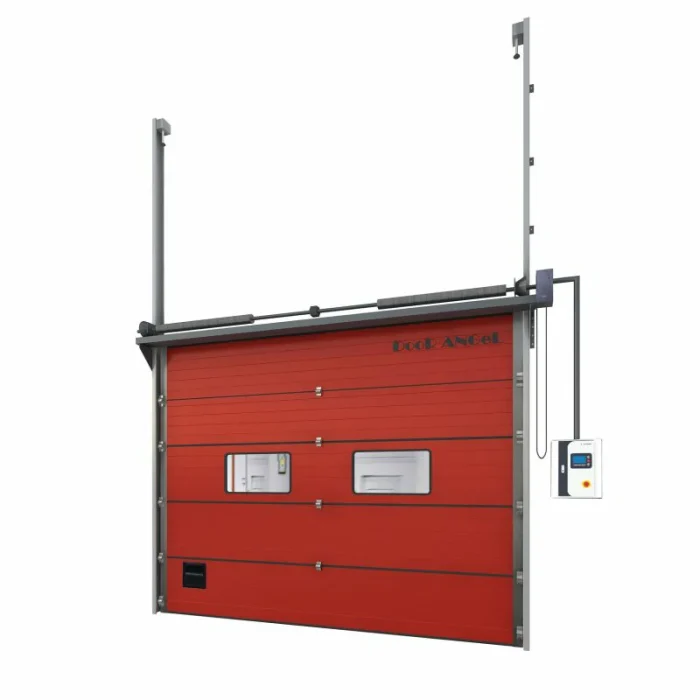

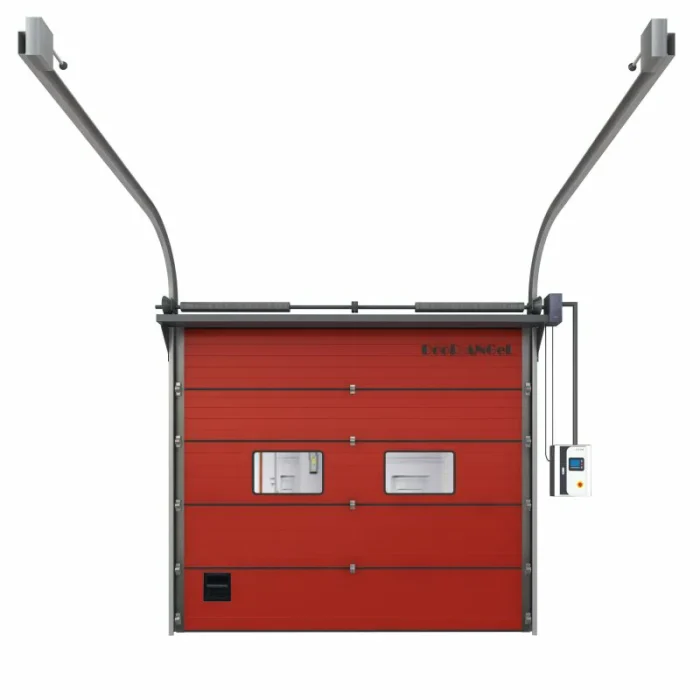

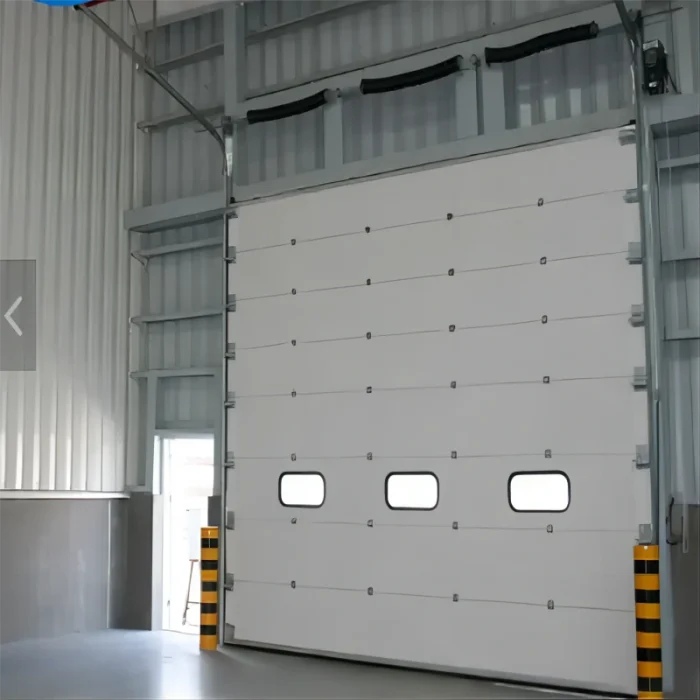

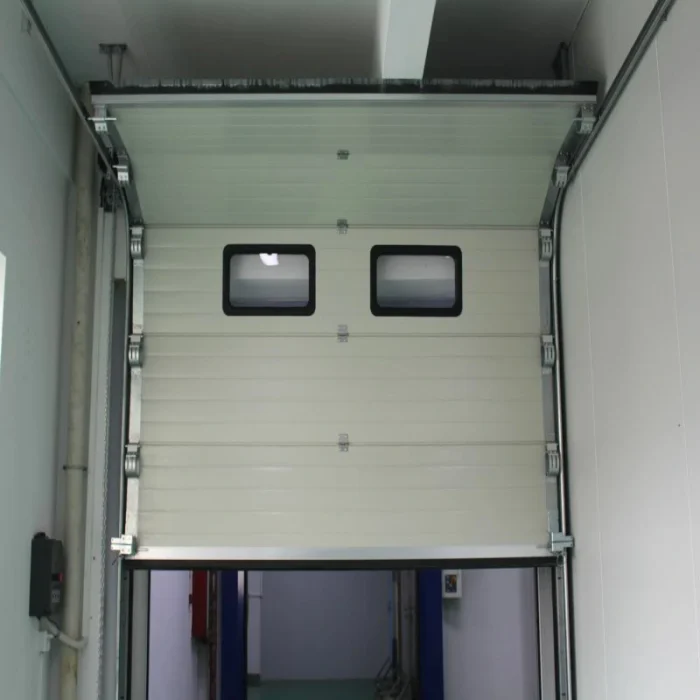

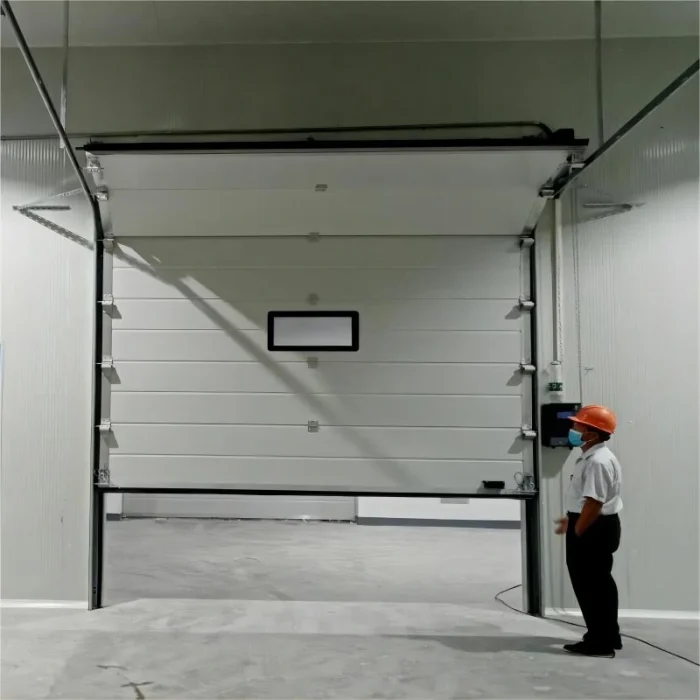

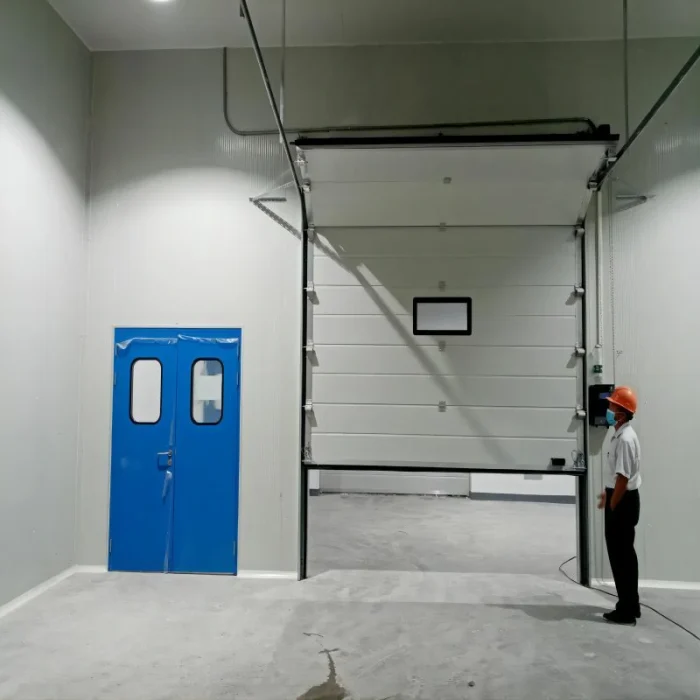

Overhead Sectional Door

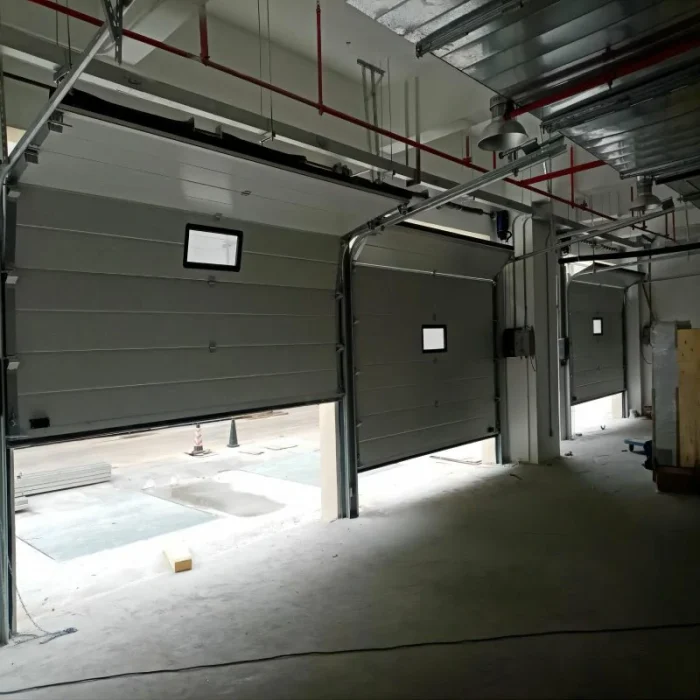

Sectional doors open vertically, saving space. They’re used in factories, buildings, and garages, available in industrial, commercial, and residential types
Share:
描述
描述
Description
Advantage
- Our overhead sectional door solutions feature high-density insulation materials, drastically reducing warehouse heating and cooling utility costs for industrial facilities.Standard doors fit openings up to 9804 mm wide and 7341 mm high, while insulated versions support widths up to 9195 mm.
- Heavy-duty track and hardware are fabricated of high-quality galvanized steel and engineered for precise, trouble-free
- Solid construction withstands wind loading of 20 psf, with a higher wind load option to meet additional requirements
Feature
- The resilient sectional door possesses flexible PVC bottom seals, minimizing severe water penetration while smoothing out uneven logistics warehouse floor surfaces.
- Featuring specialized multi-layer panels, the innovative overhead sectional door provides precise door thickness configurations ranging from 40mm up to 100mm.
- Baked-on, polyester paint finish eliminates field painting and provides long-lasting protection against the elements.
- Engineered with advanced adaptability, our versatile overhead sectional door supports flexible operational modes including manual hoist, motor-driven, remote controls, and motion sensors.
Product details
| Product Information | |
| Product Name | Overhead Sectional Door |
| Door Panel | Galvanized Steel Plate |
| Door Filler | Polyurethane foaming |
| Guide Rail | Galvanized Steel,Noise Level <= 60db |
| Door Panel Thickness | 40mm-80mm(optional) |
| Operation Temperature | From -40Degrees to 50 Degrees |
| Drive Voltage | 220V 50HZ |

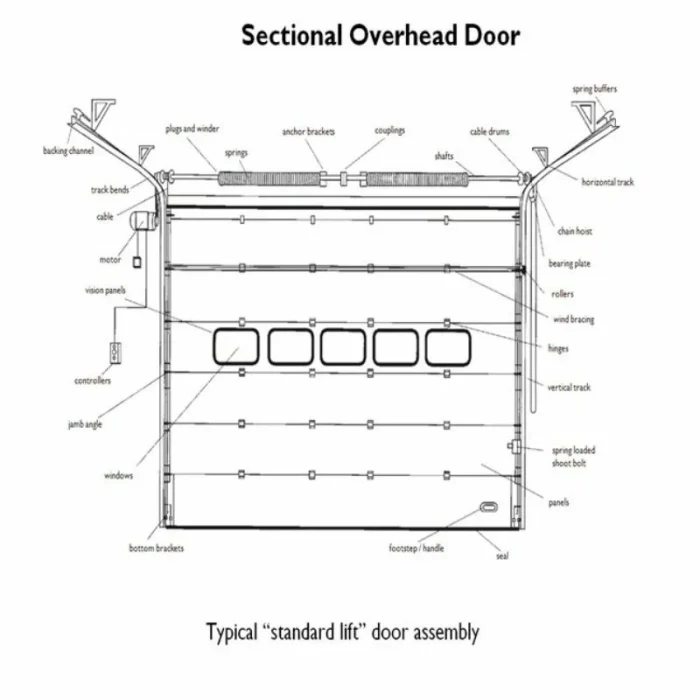

| Components | Motor, airbag, spring brake device, cable break device, pulleys, control box, brackets |
| Door Configuration: | With Clear window or small sectional door or without window/door |
| Door Panel Size | Max 12000MM |
| Opening Size | Max 8000MM |
| Heat Transfer | K=0.4-0.5W/㎡K |
| Opening Speed: | about 130mm/S |
| Operation Counts | Max 100times /24 hours |
| Opening Type: | Button,rope control,remote control,Geomagnetic Control,Photocell Control, Radar Control |
