PVC Roll Up Doors
Custom-manufactured by Xinyi Door, these high-speed pvc roll up doors optimize warehouse logistics, cut energy costs, and provide superior industrial environmental isolation.
Share:
描述
描述
Product Description
Benefit
- Optimized Thermal Insulation
Installing heavy-duty pvc roll up doors creates an airtight barrier that locks in climate-controlled air and slashes facility energy expenses significantly. - Rapid Logistics Efficiency
With operating speeds exceeding 0.6 meters per second, these pvc roll doors minimize traffic bottlenecks to streamline daily material handling. - Strict Environmental Isolation
Our specialized fast doors effectively block out external dust, flying insects, and airborne contaminants to maintain pristine cleanroom standards. - Hands-Free Automatic Closing
Equipped with intelligent sensors, industrial pvc fast doors close automatically right after vehicle passage to secure warehouse zones without delays.
Feature
- Barrier-Free Traffic Design
Engineered for high-frequency industrial environments, fast doors provide a completely clear, threshold-free opening for safe forklift and pedestrian passage. - Robust Flexible PVC Curtain
The durable curtain fabric of these pvc roll up doors resists heavy impacts and tearing, ensuring prolonged operational life in factories. - Acoustic Dampening Structure
The tightly sealed tracks of modern fast roll up doors noticeably reduce decibel levels between heavy manufacturing zones and quiet office spaces. - Industrial-Grade Motor Reliability
Built with precision control systems, our commercial pvc roll up doors deliver stable performance during continuous, multi-shift factory operations without overheating.
Specification
| Door Curtain | PVC Roll Up Doors 1.5mm transparent PVC |
| Optional color:Yellow ,blue, orange, light blue,gray,white gridding,yellow gridding. | |
| Reinforce girder | 45mm antioxidanted high strength aluminium alloy to reinforce the curtain and wind resistant. |
| Bottom bar | 45mm antioxidanted high strength aluminium alloy to reinforce the curtain to keep the door opening without a hitch. |
| Door frame | 1.5mm 201#/304# stainless steel |
| Box cover | 1.0mm 201#/304# stainless steel. Dust-proof and to avoid the roller get corrosive. |
| Guide rail | Carbon steel |
| Driven system | Servo motor: Italy SEJ motor or Xinyi Motor . (380V/220V,0.75kw/1.5kw, 2500r/min) |
| Servo motor could operate more smoothly and fast than traditional motor. | |
| Control system | Servo control system or HOLIP control box |
| Servo control system with integrated design and excellent EMI/EMC design can improve the electromagnetic interference . | |
| Photocell sensor | Korea AUTONICS Photocell sensor |
| To stop the door closing when someone get through the door, can protect people at extreme if there | |
| is an emergency. | |
| Seal structure | Heavy fabric for isolating air is installed at the door curtain can improve the sealing effect,and the Intensive double layer brush is dust-proof and reducing noise . |
Project Cases

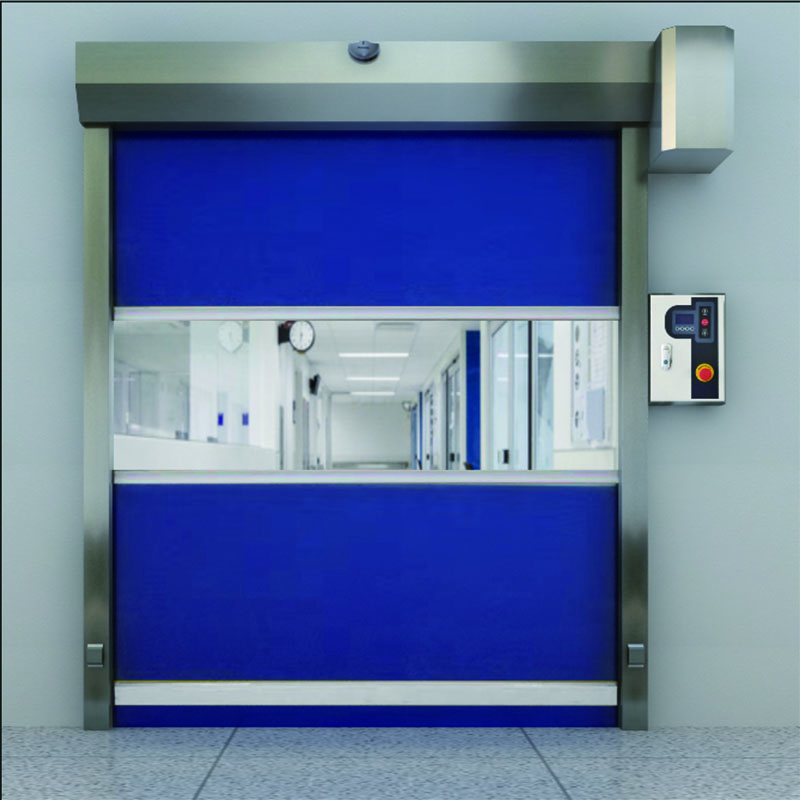

PVC high-speed door with transparent window.
